Automotive Wire Short Open Finder Power Cable Tester Circuit Detector Car Circuit Scanner Tracer EM415pro Scanner Diagnostic Tool
Description: The EM415pro Automotive Wire Short and Open Finder is a high-quality diagnostic tool designed to trace and identify wires or cables without damaging their insulation. It's ideal for detecting short circuits and locating open circuits in various automotive wiring systems, even in hard-to-reach areas. This tool includes a transmitter and a receiver, making it easy to use and highly effective in different tracing situations. Key Features: Non-Invasive Tracing: Trace wires without damaging the insulation, suitable for use inside bundles, conduits, behind panels, under carpets, and upholstery. Easy to Use: Connect the transmitter in series with the circuit or wire under test, and use the flexible probe of the receiver to locate trouble spots. Wide Voltage Range: Operates on DC voltages from 6 to 42 volts, suitable for the new generation of vehicles with mixed or single 42-volt systems. Protected: Internally protected against power surges and overloads. Flexible Probe: A 7-inch flexible probe allows access to wires in congested places. LED Indicators: Both transmitter and receiver have LEDs that show open or short circuit conditions. Adjustable Sensitivity: Allows for precise tracing in various situations. Non-Contact Technology: No wire piercing required. Specifications: Function: Wire tracing, checking for short circuits, locating open circuits, wire identification. Item Length: 20.4 cm Item Width: 4.4 cm Power Supply: Two 9V batteries (not included) Material: Plastic Item Weight: 0.22 kg Color: As shown Package Includes: 1 x Automotive Short and Open Finder (9V battery not included) 1 x English Manual Usage Instructions: Connect Transmitter: Attach the transmitter in series with the circuit or wire under test. This can be done in place of a blown fuse, across a connector, in series with an open wire, or a light bulb socket. Scan with Receiver: Use the receiver’s flexible probe to scan the circuit or wire to find the trouble spot. LED Indicators: Observe the LEDs on the transmitter and receiver to determine if the circuit is open or shorted. Adjust Sensitivity: Adjust the sensitivity on the receiver as needed to accurately trace the wires. Ideal Applications: Automotive diagnostics Electrical maintenance Wire tracing in bundled and hidden installations Identifying short and open circuits Keywords: Automotive Wire Short Finder, Open Finder, Circuit Tester, Power Cable Tester, Car Circuit Scanner, EM415pro Diagnostic Tool, Electrical Testers, Wire Tracing Tool, Non-Contact Circuit Tracer, 6-42V Circuit Detector, Automotive Diagnostic Tool, Car Electrical Maintenance, Short Circuit Finder, Open Circuit Locator. This tool is perfect for automotive professionals and DIY enthusiasts who need a reliable and easy-to-use device for diagnosing electrical issues in vehicles.
Automotive Wire Short Open Finder Power Cable Tester Circuit Detector Car Circuit Scanner Tracer EM415pro Scanner Diagnostic Tool
Price
2,500 BDT
Secure
Checkout
Satisfaction
Guaranteed
Privacy
Protected
Details:
- ModelEM415PRO
- MaterialPlastic
- Item TypeElectrical Testers & Test Leads
- WarrantyN/A
Description:

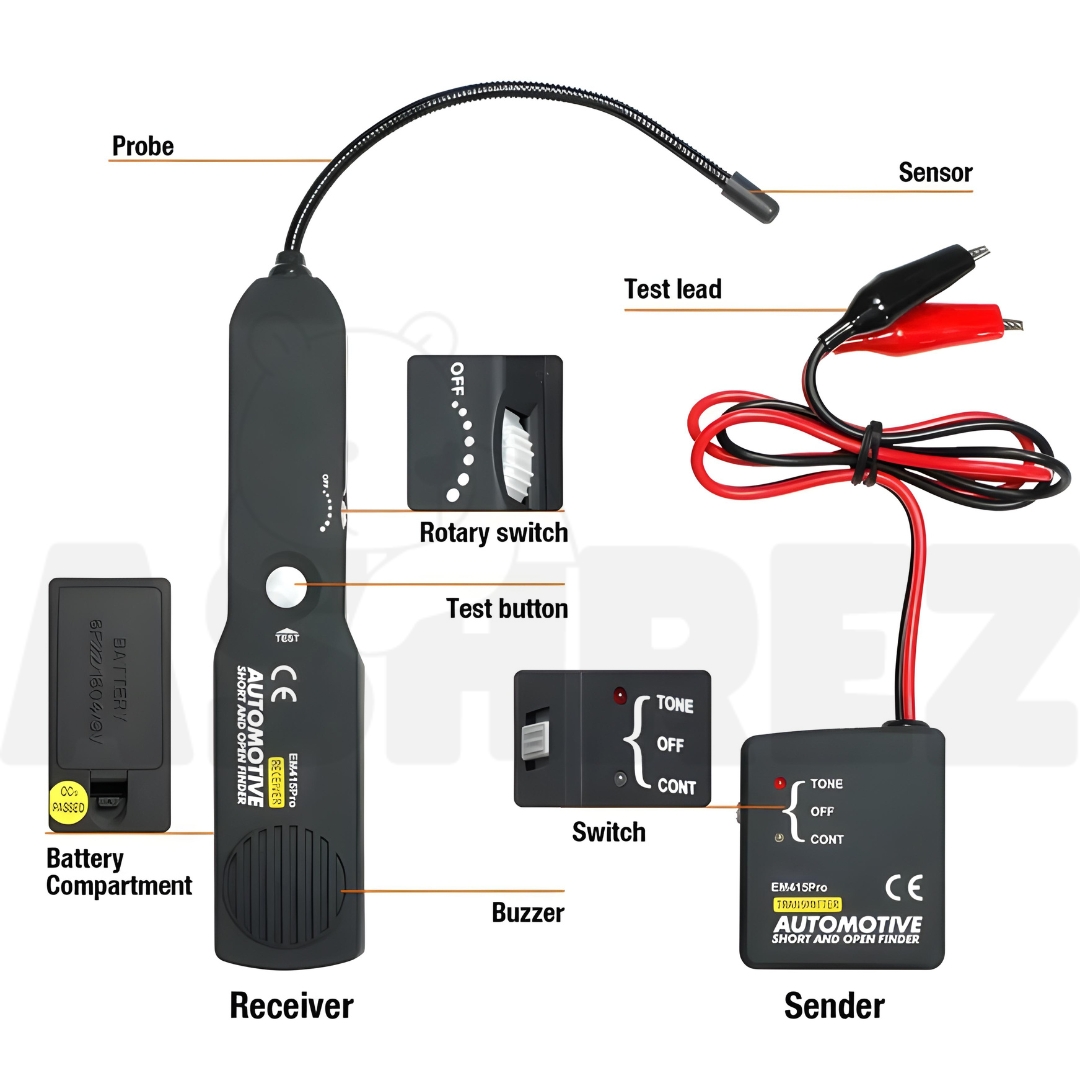

The EM415pro Automotive Wire Short and Open Finder is a high-quality diagnostic tool designed to trace and identify wires or cables without damaging their insulation. It's ideal for detecting short circuits and locating open circuits in various automotive wiring systems, even in hard-to-reach areas. This tool includes a transmitter and a receiver, making it easy to use and highly effective in different tracing situations.
Key Features:

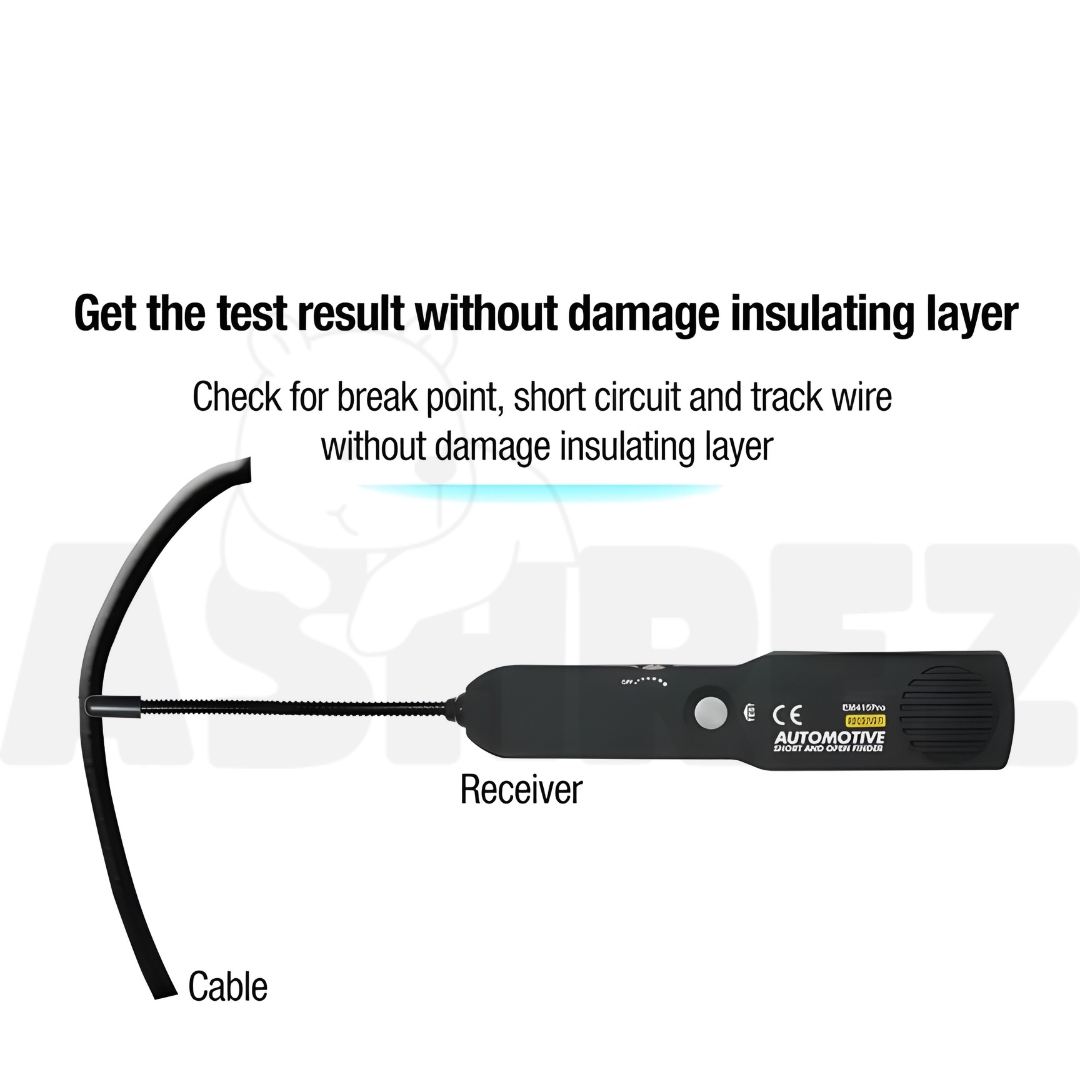

Non-Invasive Tracing: Trace wires without damaging the insulation, suitable for use inside bundles, conduits, behind panels, under carpets, and upholstery.
Easy to Use: Connect the transmitter in series with the circuit or wire under test, and use the flexible probe of the receiver to locate trouble spots.
Wide Voltage Range: Operates on DC voltages from 6 to 42 volts, suitable for the new generation of vehicles with mixed or single 42-volt systems.
Protected: Internally protected against power surges and overloads.
Flexible Probe: A 7-inch flexible probe allows access to wires in congested places.
LED Indicators: Both transmitter and receiver have LEDs that show open or short circuit conditions.
Adjustable Sensitivity: Allows for precise tracing in various situations.
Non-Contact Technology: No wire piercing required.
Specifications:
Function: Wire tracing, checking for short circuits, locating open circuits, wire identification.
Item Length: 20.4 cm
Item Width: 4.4 cm
Power Supply: Two 9V batteries (not included)
Material: Plastic
Item Weight: 0.22 kg
Color: As shown

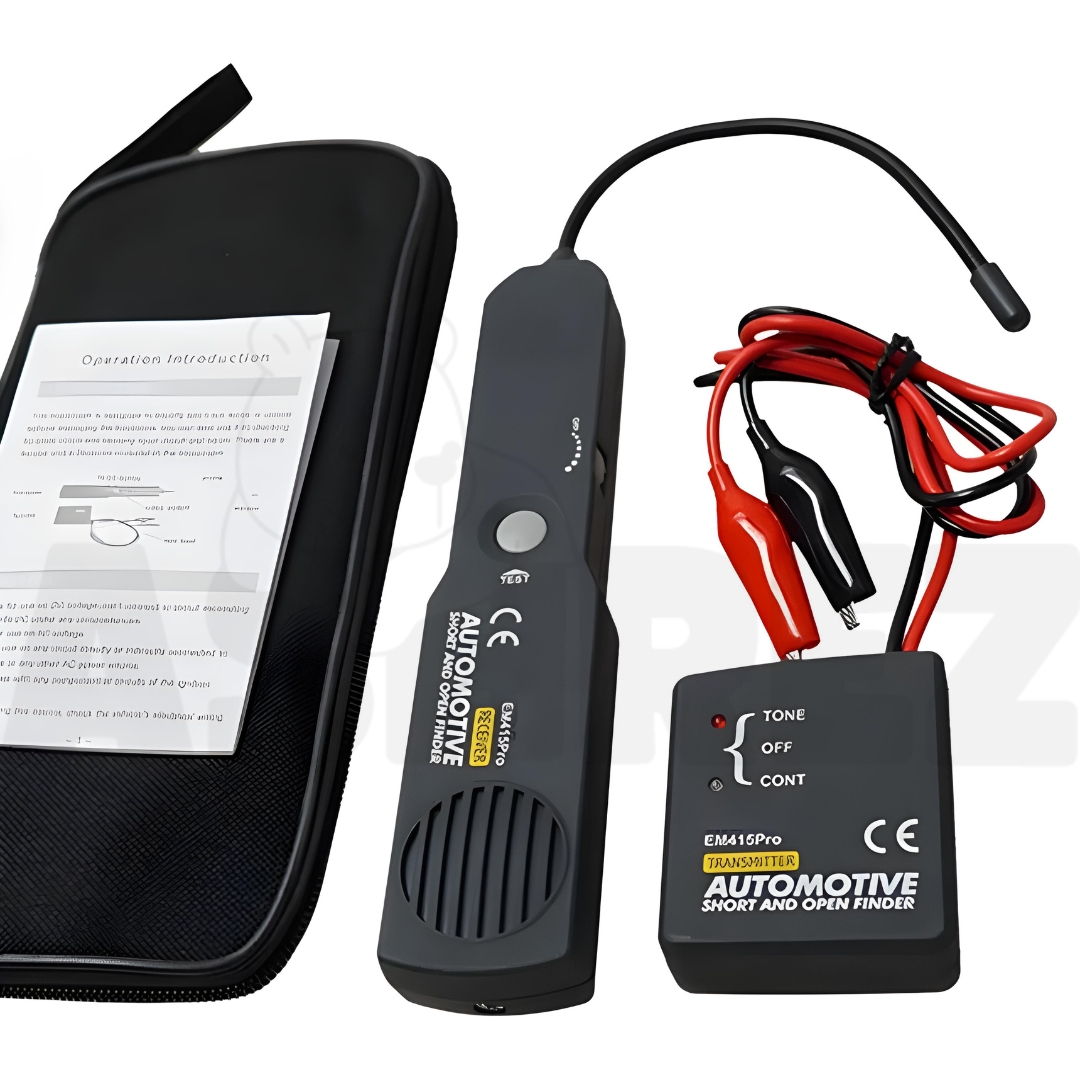

Package Includes:
1 x Automotive Short and Open Finder (9V battery not included)
1 x English Manual
Usage Instructions:

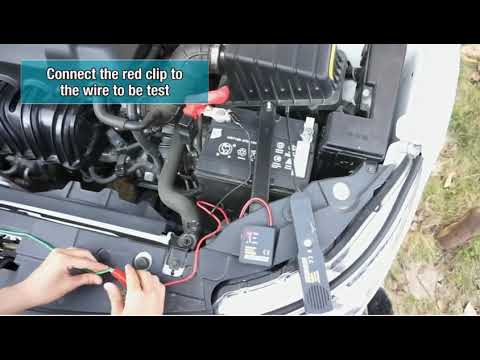

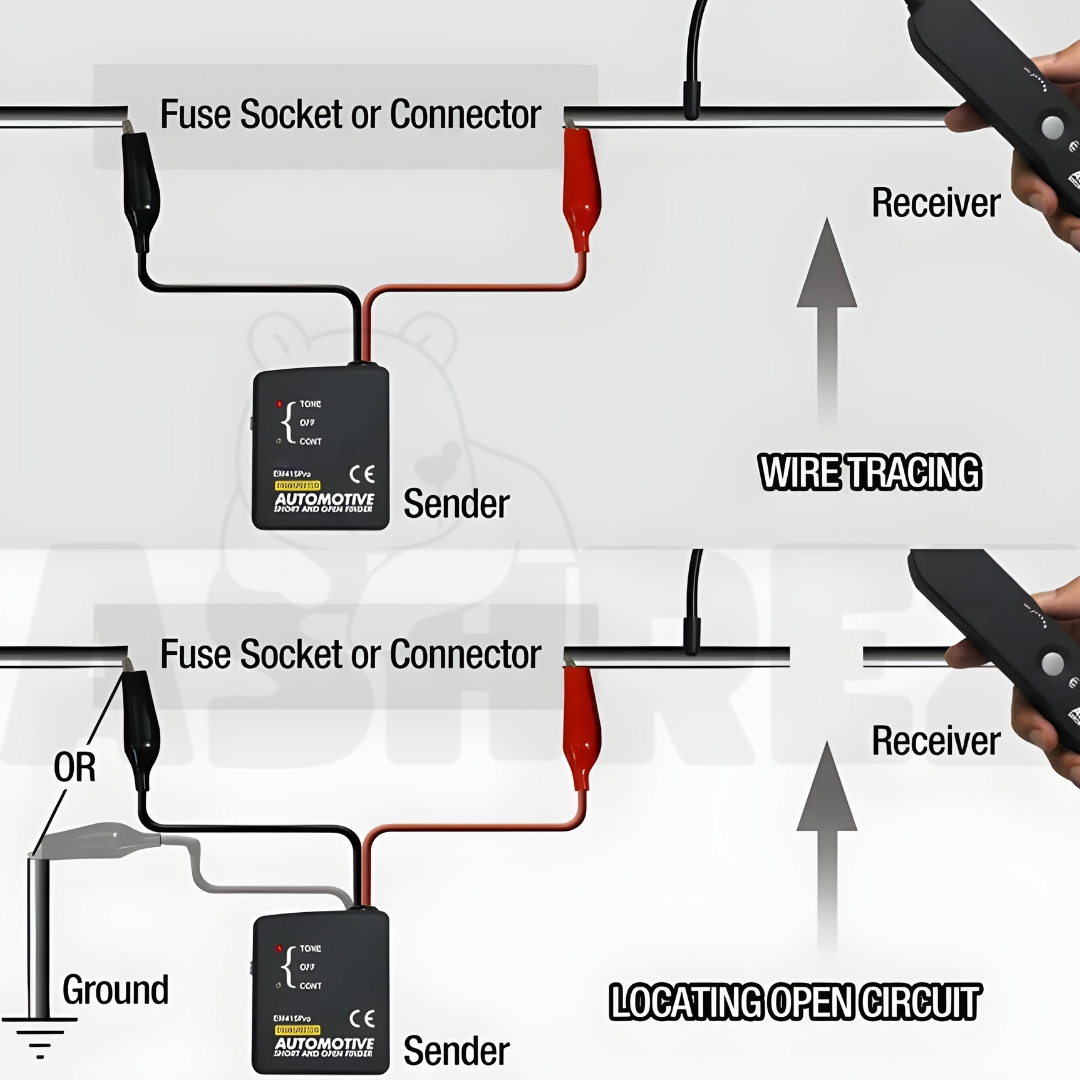

Connect Transmitter: Attach the transmitter in series with the circuit or wire under test. This can be done in place of a blown fuse, across a connector, in series with an open wire, or a light bulb socket.
Scan with Receiver: Use the receiver’s flexible probe to scan the circuit or wire to find the trouble spot.
LED Indicators: Observe the LEDs on the transmitter and receiver to determine if the circuit is open or shorted.
Adjust Sensitivity: Adjust the sensitivity on the receiver as needed to accurately trace the wires.
Ideal Applications:
Automotive diagnostics
Electrical maintenance
Wire tracing in bundled and hidden installations
Identifying short and open circuits
Keywords: Automotive Wire Short Finder, Open Finder, Circuit Tester, Power Cable Tester, Car Circuit Scanner, EM415pro Diagnostic Tool, Electrical Testers, Wire Tracing Tool, Non-Contact Circuit Tracer, 6-42V Circuit Detector, Automotive Diagnostic Tool, Car Electrical Maintenance, Short Circuit Finder, Open Circuit Locator.
This tool is perfect for automotive professionals and DIY enthusiasts who need a reliable and easy-to-use device for diagnosing electrical issues in vehicles.
